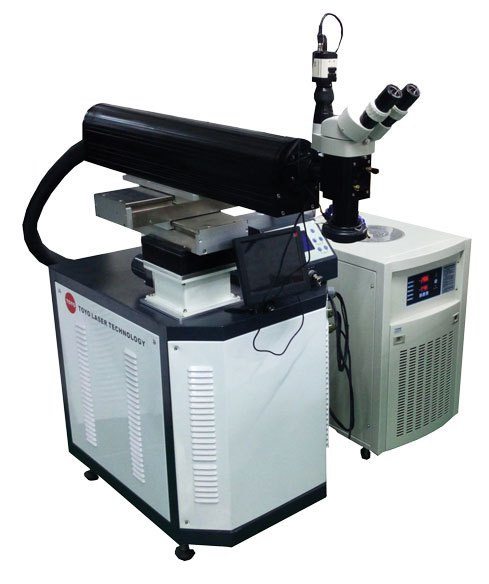

Toyo ECO-Line WY 200A

Features:

  • It adopts an imported ceramic condenser cavity from the UK, high reflectivity, strong power, and extremely long service life.
  • This model occupied the largest proportion in the Malaysia market for its proven technology and
    stable performance.
  • It is equipped with a 1.5P high power special cooling water system that is able to support the machine to
    work longer hours with high power in good condition.
  • The base of the worktable uses electric lifting for up and down movement. The moving unit of the
    worktable is equipped with a precision ball bearing bar and linear lead rail. It is lightweight and
    flexible with precise positioning.

Description

Technical Specifications Toyo ECO-Line WY 200A Laser Welding Machine
LASER POWER 200W
LASER SOURCE Pulsed ND YAG 6mm
PULSE WIDTH 0.3ms – 20ms
PULSE FREQUENCY 0.1Hz – 50 Hz
SINGLE PULSE ENERGY 60J
BEAM DIAMETER 0.1mm – 3.0mm
COOLING SYSTEM 1P water chiller
POWER CONSUMPTION 6KW
OBSERVING SYSTEM Microscope x10
3 AXIS OF LASER X-Axis = 200mmY-Axis = 200mmZ-Axis = 100mmAll electrical
3 AXIS OF TABLE X-Axis = 300mmY-Axis = 200mmZ-Axis = 150mmZ electrical
DATA MEMORIZATION 10 Groups
ILLUMINATION LED Ring Lights
LANGUAGE DISPLAY English
SHIELD GAS SUPPLY One line quick connection (argon)
RUNNING ENVIRONMENT Temperature 5°C – 30°C Humidity 5% – 75%
DIMENSIONS Welder Dimension = 1150mm x 700mm x 1300mmTable Dimension = 850mm x 550mm x 670mmChiller Dimension = 960mm x 760mm x 1150mm
WEIGHT Welder Weight = 150kgTable Weight = 70kgChiller Weight = 75kg
LASER HEAD 360 degree swing
OPTIONAL CCD and Monitor
Magnetic Ball
